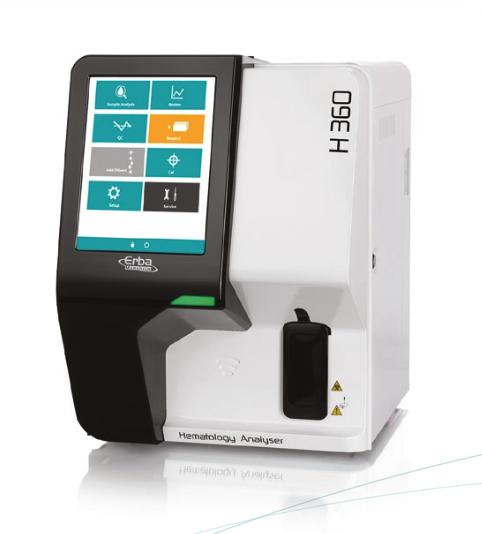

Product Description – H360 Fully Automated 3-Part Hematology Analyzer

The H360 from Erba Mannheim is a next-generation, fully automated 3-part differential hematology analyzer designed for ease of use, reliability and premium analytical performance. It delivers fast and accurate Complete Blood Count (CBC) results with essential parameters such as hemoglobin, platelet count and WBC differential.

With a low aspiration volume of just 9 µL, automatic diluent dispensing for pre-diluted samples and one-click analysis, the H360 is ideal for laboratories handling small sample volumes. Its 10.4” touchscreen, integrated printer, barcode reader, LIS connectivity and RFID-based inventory management ensure smooth workflow and full traceability. The analyzer is built with high-quality components, anti-clog technology and a compact footprint, making it both reliable and space-efficient.

Technical Specifications – H360

System Type

• Fully Automated 3-Part Differential Hematology Analyzer

Analytical Modes

• Manual

• Predilute

• Capillary

Total Reportable Parameters (22)

• WBC, RBC, HGB, HCT

• MCV, MCH, MCHC

• RDW-CV, RDW-SD

• PLT, MPV, PCT

• PDW-CV, PDW-SD

• P-LCR, P-LCC

• Lymph %/#, Mid %/#, Gran %/#

Sample Volume

• Whole Blood: 9 µL

• Pre-diluted: 20 µL

• Capillary: 20 µL

Principle of Measurement

• RBC / PLT / WBC / DIFF: Electrical Impedance

• Hb: Cyanide-Free Colorimetry

• MCV: Measured

• HCT: Calculated

Linearity Range

• WBC (×10³/L): 0 – 300

• RBC (×10⁶/L): 0.00 – 8.50

• Hb (g/dL): 0 – 25.0

• HCT (%): 0 – 67

• PLT (×10³/L): 0 – 3000

Histograms

• 3 Histograms: WBC, RBC, PLT

Throughput

• 60 Tests per Hour

Quality Control

• Levey-Jennings (L-J) Charts

• X-BAR QC

Calibrator & Controls

• ELite H Cal (3 mL)

  • Open vial stability at 2–8°C: 7 Days

• Erba H3 CON L, N, H (3 mL)

  • Open vial stability at 2–8°C: 14 Days

Data Storage

• 50,000 Results with Graphs

Display & Interface

• 10.4” Touchscreen Display

• Integrated Printer

• Barcode Reader

• Mouse & Keyboard Support

• LIS Connectivity

• Full traceability with RFID Inventory Management

Advanced Features

• Low Aspiration Volume: 9 µL

• Advanced Platelet Analysis:

  • P-LCR, P-LCC, PDW-SD, PDW-CV

• Automatic Floating Discriminations

• Guaranteed Dilution Accuracy via Automatic Diluent Dispensing

• Anti-clog Technology

• Status Indicator

Dimensions & Weight

• Dimensions: 364 × 477 × 417 mm

• Weight: 25 kg

Interfaces

• 4 USB Ports + 1 LAN Port

Operating Environment

• Temperature: 15 – 30°C

• Atmospheric Pressure: 70 kPa – 106 kPa

Power Requirements

• Standard Power Supply as per Laboratory Electrical Standards

Reagents

• Erba Dil

• ERBA Lyse (Cyanide Free)

• ELite H Clean

Order Details

Analyzer

• INS00077 – H360 3-Part Differential Analyzer

H-Series Reagents

• HEM00028 – Erba H360 Dil – 20 Litres

• HEM00029 – Erba H360 Lyse – 500 mL

• HEM00023 – ELite H Clean – 50 mL

• HEM00033 – Erba H3 CON L – 3 mL

• HEM00034 – Erba H3 CON N – 3 mL

• HEM00035 – Erba H3 CON H – 3 mL

• HEM00027 – ELite H CAL
